Renewable Energy Substations

T2 Energy specialises in the design and manufacture of electrical and mechanical fabricated equipment for grid connected solar farms and wind farms.

Our 22/33kV substation design is flexible and can be configured to project requirements to satisfy client design criteria. Medium Voltage switchboards and all control room equipment is installed, cabled, and tested in our factory, and is able to be pre-commissioned by our clients prior to despatch to site.

T2 Energy manufactures custom-built transportable switchroom buildings and cost-effective containerised switchroom buildings, which generally include the following on completion of the solar or wind farm substation:

  • 22kV/33kV Switchboard(s), including protection relays and relay programming
  • 415VAC Main Switchboard
  • AC and DC Standby Power
    • Battery Chargers, UPS, Battery Banks
  • Metering Panels, including Power Quality Metering, Revenue & Check Metering
  • 66kV (or 132kV) Transformer and Line Protection Panels
  • SCADA and Communications Panels
  • Fire Systems
    • FIP Panels, VESDA units, smoke detectors, MCP’s, alarms, etc installed, cabled, and tested
    • Gas Suppression Systems for switchrooms
  • Airconditioning System, rated for heat loading and redundancy requirements.
Image Description

Outdoor MV Switchgear Enclosures and Padmounted Transformer Kiosks

Outdoor MV switchgear enclosures and padmounted transformer kiosks are designed and manufactured to meet the particular requirements of each solar farm or wind farm project, with switchgear and transformers supplied by reputable multinational manufacturers.

Padmounted transformer kiosks typically include:

  • 22kV/33kV switchgear (RMU’s)
  • Converter transformers (2 or 3 winding)
  • Low voltage end, or busbars suitable for connecting large solar inverter cables (where solar inverters are stand-alone equipment)
Image Description

Renewable energy solutions projects

Image Description

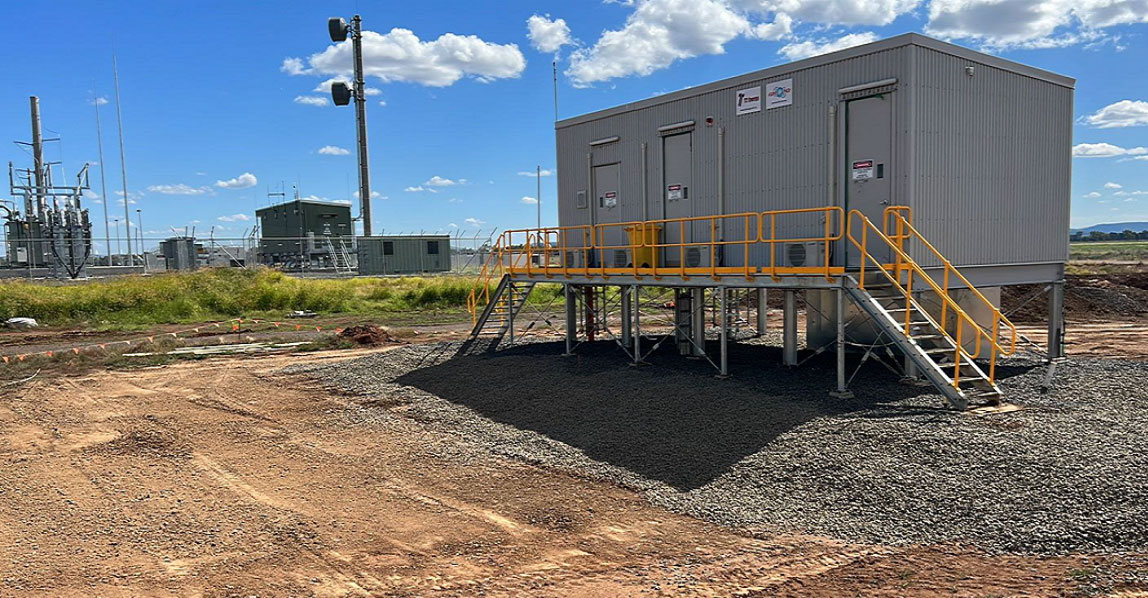

Gunnedah Solar Farm project

T2 Energy was responsible for the design and manufacture of the 33kV Switchroom and Control Room building, and the O&M building at Canadian Solar's 154MW Gunnedah Solar Farm in NSW.

View Project
rugby run

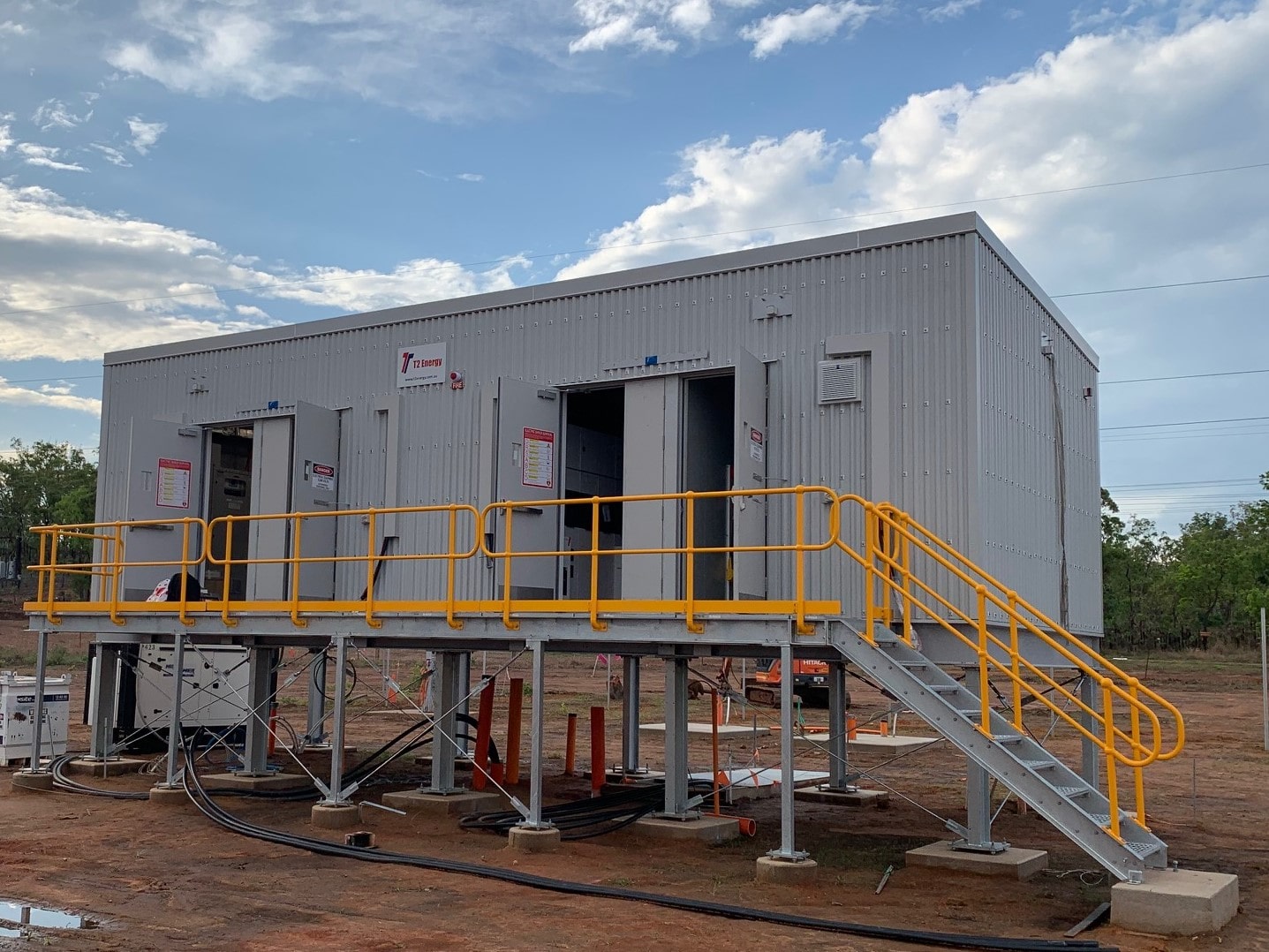

Batchelor, Manton, and Batchelor Solar Farm Projects

The Batchelor, Manton, and Batchelor 2 Solar Farms are all located in the Northern Territory, approximately 100km South of Darwin.

View Project
Image Description

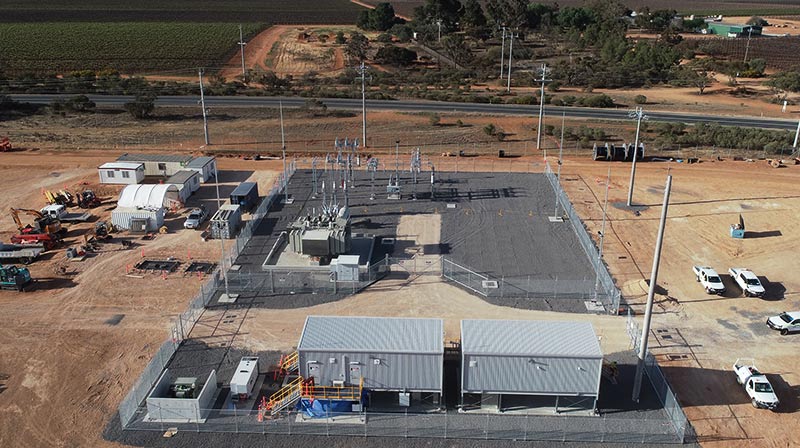

Wemen Solar Farm Project

T2 Energy was responsible for the design and manufacture of the 33kV Switchroom and Control Room building and the Powercor Utility building at the 88MW (AC) Wemen Solar Farm which is located South of Mildura in Victoria.

View Project
rugby run

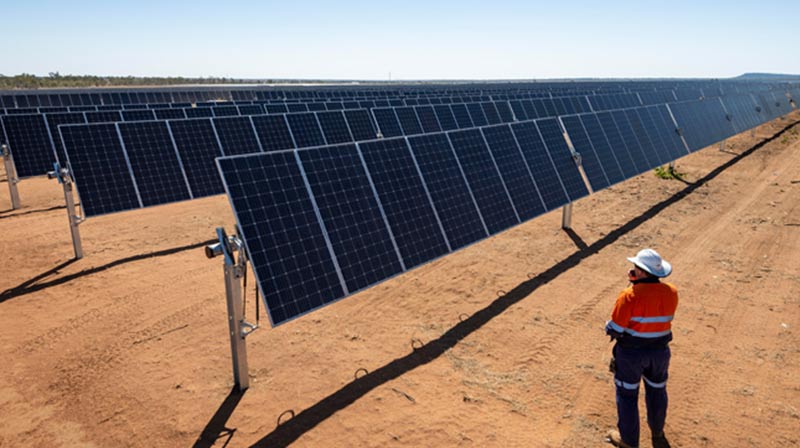

Rugby Run Solar Farm

Adani Renewables’ first solar project, Rugby Run Solar Farm, is located near the town of Moranbah in Queensland. Phase one of the project will supply 65MW of renewable power through the use of 247,000 solar panels, and the solar farm has the capacity to expand up to 170MW.

View Project
swan hill

Swan Hill Solar Farm

The Swan Hill Solar Farm in Victoria is a 19MW solar farm with more than 50,000 solar panels operating on a single axis tracking system.

View Project
August 2018

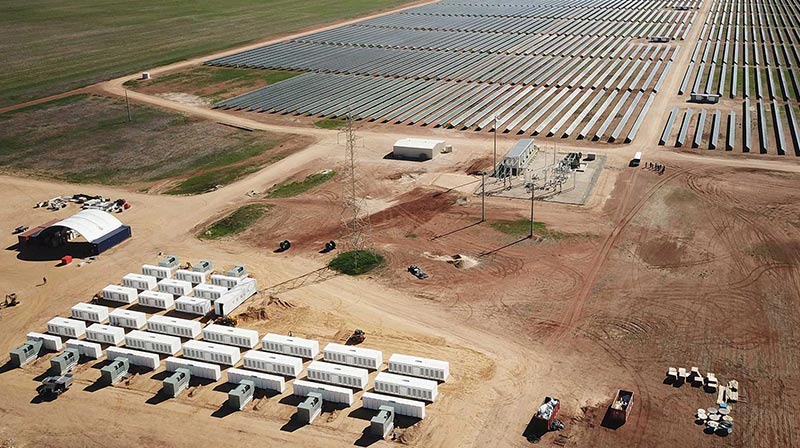

Gannawarra Solar Farm

T2 Energy was responsible for the design and manufacture of the 33kV Switchroom and Control Room building and the Powercor Utility building at the 60MW Gannawarra Solar Farm which is located west of Kerang in north-west Victoria.

View Project

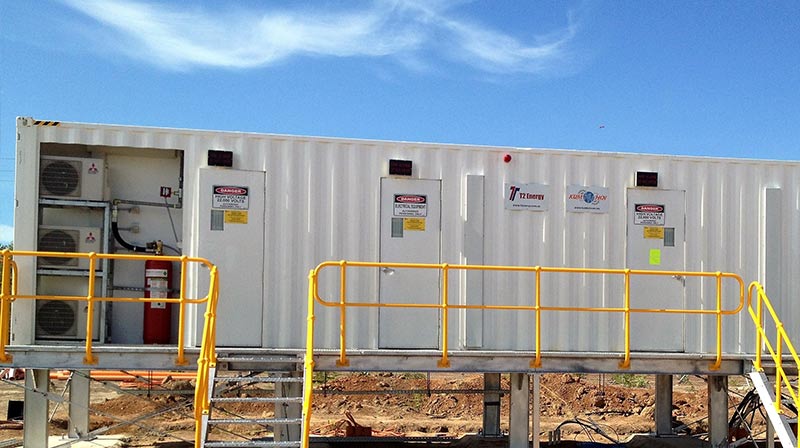

Normanton Solar Farm

The Normanton Solar Farm in northern Queensland is located on a site of approximately 10 hectares, which is 5km south of Normanton township. The Solar Farm has a capacity of 5MW (DC)/4.5MW(AC), and includes 16,000 x 310Watt solar modules supplied by Canadian Solar. The solar modules are mounted on fixed-tilt arrays, optimised for the Normanton site latitude.

View Project
